Beta version 4.3

Gunnar · March 31, 2026, 4:44pm

That feature was implemented at the same time as logging.

globalThis.OnTimerElapsed() should work.

thx538 · April 1, 2026, 5:46am

It works but it seems that globalThis.OnTimerElapsed() consume all timer elapsed events and that if I have OnTimerElapsed() elsewhere (to manage another timer on the same button) it is not triggered.

For instance, if I have this code :

/// <reference path="C:/Users/LPA/AppData/Roaming/Elgato/StreamDeck/Plugins/se.trevligaspel.midi.sdPlugin/ScriptJint/streamdeck-midi.d.ts" />
const{registerButton, ButtonHandler, handleTimerElapsed} = require("./PressHandler.js");
//const{exportedIncrement} = require("./SharedCounter.js");
const bName = "PressTest";
const bName_dt = bName + "_dt";
const DISP_MS = 1500;
var longActive = false;
ui.text("Start");


function OnInit() {ui.text("Init")}

// Register callbacks for button, returns the timer name
const bName_pt = registerButton(bName, singlePress, doublePress, longPress);


// Stream Deck events : Pass to PressHandler
function OnKeyPressed() {
    ButtonHandler("press");
    //exportedIncrement();
}
function OnKeyReleased() {
    ButtonHandler("release");
    if (longActive) {
            longActive = false;
            //timer.reset(bName_dt);
            timer.restart(bName_dt, DISP_MS);
    }
}


// Callbacks for single Press, Double Press or Long Press
function singlePress() { ui.text("Single Press"); timer.restart(bName_dt, DISP_MS);
    console.warn("PressTest: Timer started, , name=", bName_dt);
}
function doublePress() { ui.text("Double Press"); timer.restart(bName_dt, DISP_MS);}
function longPress()   {
    ui.text("Long Press");
    longActive = true;   // mark long press active
}


function OnTimerElapsed(tname, isGlobal, time) {
    console.warn("PressTest: Timer elapsed, name=", tname, ", isGlobal=", isGlobal);
    switch(tname) {
        // case bName_pt: {handleTimerElapsed(tname, isGlobal, time); break;}
        case bName_dt: {
            ui.text("Idle");
            timer.reset(bName_dt);
            break;
        }
        default: return;
    }
}

and this exported module :

/// <reference path="C:/Users/LPA/AppData/Roaming/Elgato/StreamDeck/Plugins/se.trevligaspel.midi.sdPlugin/ScriptJint/streamdeck-midi.d.ts" />

const tSuffix = "_pt";
const LONG_PRESS_MS = 400;

// Internal state for the single button
let clickCount = 0;
let isPressed = false;
let longFired = false;

// Callback references
let singlePressFn = null;
let doublePressFn = null;
let longPressFn = null;

// Store the last registered button name
let buttonNameGlobal = "";

/**
 * Register the single button
 * Returns the _pt timer name
 */
function registerButton(buttonName, singlePress, doublePress, longPress) {
    buttonNameGlobal = buttonName;
    singlePressFn = singlePress;
    doublePressFn = doublePress;
    longPressFn = longPress;

    // ✅ return the press timer name
    return buttonName + tSuffix;
}

/**
 * Handle press/release events
 */
function ButtonHandler(event) {
    if (!buttonNameGlobal) return;
    const tname = buttonNameGlobal + tSuffix;

    if (event === "press") {
        isPressed = true;
        if (clickCount === 0) {
            longFired = false;
            timer.reset(tname); // Safeguard
            timer.restart(tname, LONG_PRESS_MS);
        }
    }
    else if (event === "release") {
        isPressed = false;
        if (!longFired) clickCount++;
    }
}

/**
 * Timer callback
 */


globalThis.OnTimerElapsed = (tname, isGlobal, time) => {
    console.warn("PressHandler: Timer elapsed, name=", tname);
    if (!buttonNameGlobal) return;
    if (tname !== buttonNameGlobal + tSuffix) return;
    handleTimerElapsed(tname, isGlobal, time);
};






function handleTimerElapsed(tname, isGlobal, time) {
    // Remove these two lines when globalThis is available
    //if (!buttonNameGlobal) return;
    //if (tname !== buttonNameGlobal + tSuffix) return;

    const count = clickCount;
    clickCount = 0; // reset first

    if (isPressed && longPressFn) {
        longPressFn();
        longFired = true;
    }
    else if (count === 1 && singlePressFn) {
        singlePressFn();
    }
    else if (count >= 2 && doublePressFn) {
        doublePressFn();
    }

    timer.reset(tname);
}

module.exports = {registerButton, ButtonHandler, handleTimerElapsed};

The timer elapsed event for bName_dt (=PressTest_dt) is never called in the main script, only in the exported module, even if i make it global, while i would expect to be fired and the button text return to “Idle”.
It seems the problem to me.
Am I correct ?

Log Id for a single Press: 8837bc2b-d38a-483c-8f62-64b7227e921b

Gunnar · April 1, 2026, 9:02am

Yes. You can’t have two functions with the same name in the same scope. When you define globalThis.OnTimerElapsed(), that function will replace the function in the main script.

thx538 · April 2, 2026, 8:47am

Hello, it’s me again

I have a small annoyance when setting global variables, it seems their names are lowercased.

Example code in a background script :

// ------------------------
// Control Change mapping (same style as sysExList)
// ------------------------
const ccList = [
    [15, 0, "g_trackNum"],
    [15, 24, "g_sceneNum"]
];

// Fast lookup for CC
const ccMap = Object.fromEntries(
    ccList.map(([ch, ctrl, name]) => [`${ch}_${ctrl}`, name])
);

// ------------------------
// CC handler
// ------------------------
function OnControlChangeReceived(channel, control, value) {
    const key = `${channel}_${control}`;
    const varName = ccMap[key];
    if (!varName) {
        //console.warn(`No variable mapped for CC ${channel},${control}`);
        return;
    }

    gvar.set(varName, value);
    console.warn(`BCC var set: ${varName} =`, value);

and in a scripted dial :

function OnGlobalVariableChanged(name, value) {
    //console.warn ("Global var ", name, " changed, value= ", value);
    switch(name) {
        case "g_tname_sel":  {refreshNames(); break;}
        case "g_sname_sel":  {refreshNames();; break;}
        case "g_trackNum": {
            console.warn (" g_trackNum changed, value= ", value);
            ui.value(value, (l_disp == 2) ? true : false);
            break;
        }
        case "g_tracknum": {
            console.warn (" g_tracknum changed, value= ", value);
            break;
        }
        //default: console.warn ("Default reached, name= ", name, " changed, value= ", value);
    }
}

Log : 738f0760-3d50-406a-924e-9cab9744612c

Can it be changed so that capitalization is preserved ?
Thanks.

thx538 · April 2, 2026, 8:49am

And an additional question.
We have ui.value to set the value, but to we have a method to read the value ?

Gunnar · April 2, 2026, 11:34am

Oh no, the dreaded superscripter!

The variable controller stores all variable names in lowercase.

I’ll take a look and see if I can find a solution that doesn’t break compatibility with midiScript variables.

No. The plugin doesn’t save the value anywhere; it just forwards it to the Stream Deck software. It would, of course, be possible to add caching of that particular value somewhere. Is your question about the ui.value property in particular, or ui in general?

thx538 · April 3, 2026, 4:48am

It was in particular but I managed to have my own caching in this case (and others, given what I read in the documentation : Unlike midiScripts, JavaScript event handlers are always triggered and must decide for themselves whether to respond to an event.)

Gunnar · April 3, 2026, 8:39am

This version includes some breaking changes compared to the previous beta.

I have decided to expose the midi driver selection in a better way than using keywords, so there’s a new section in the “Midi Settings” tab (previously named “Midi Restore”) for Windows users. The midi driver keywords are no longer used, and previous keywords are not migrated. In addition, I have reverted to using the legacy driver as the default. If you had a keyword for another driver, you need to select the same driver in the new section.
I have removed the “enableJavaScript” keyword and replaced it with “disableJavaScript”, making JavaScript enabled by default.
Global variables in JavaScript should now be case-sensitive, so if you define the global variable “MyVar”, it should be returned as “MyVar” (not “myvar”) in the name attribute in the OnGlobalVariableChanged() event handler.

My plan is to release this version as soon as possible to (hopefully) bring some order to the port confusion caused by the MIDI Service on Windows. If you find any issues, please let me know.

Version 4.2.0.66

jordikt · April 3, 2026, 11:50am

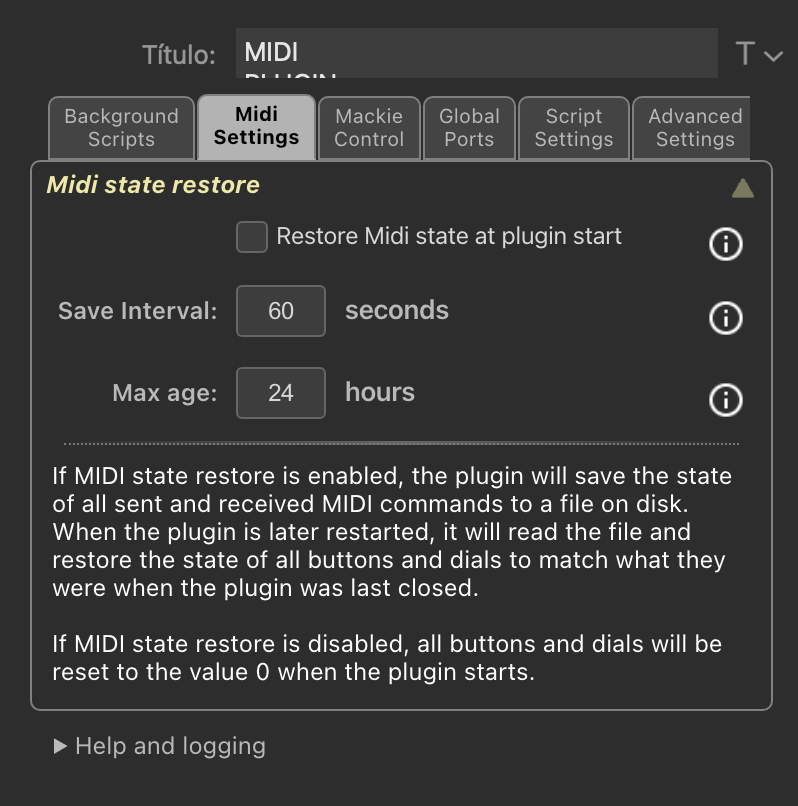

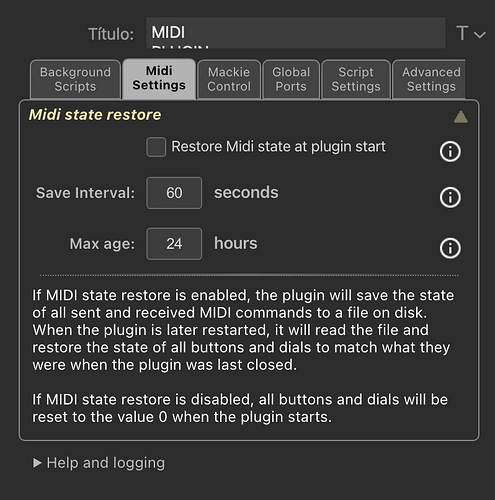

Cosmetic issue: The tab “Advanced Settings“ is cropped (at least in macos version)

thx538 · April 3, 2026, 2:37pm

There is something I don’t understand when this code is executed :

function setLayout() {
    console.warn("Setting layout: " + gvar.g_lp + "ts_fader_TR_SC.json, reset=", true);
    layout.load(gvar.g_lp + "ts_fader_TR_SC.json", true);
    layout.l_toptext_full_width.color =  "#B8A46E"; // Light Yellow
    layout.l_fadertext_left_side_upper_row.color = "Gray";
}

It seems that l_toptext_full_width.color and l_fadertext_left_side_upper_row.color are ignored despite being set.
Log : 145d95f2-4560-41fb-a9a0-3607f5269124

… and on the occasion, I am not sure that the old #default# keyword is working so I use layout.load(""); to clear the layout. Is it correct ?

.. the same goes for iconleft() with the #none# keyword, I just use iconleft(""). Correct ?

Gunnar · April 3, 2026, 4:36pm

Yes, I see in your log file that the colors you set are ignored, but I can’t reproduce this; the values are used when I copy your script. How is the text content set? I believe that might be what’s different between your setup and mine.

Yes, #default# and #none# are not used; you are doing the right thing to use empty strings.

thx538 · April 3, 2026, 4:46pm

I use :

function trsc_GlobalVariableChanged(disp, name, value) {
    //console.warn ("Global var ", name, " changed, value= ", value);
    switch(name) {
        // Names
        case "g_tname_sel":  {refreshNames(disp); break;}
        case "g_sname_sel":  {refreshNames(disp); break;}

and :

function refreshNames(disp) {
    ui.title((disp==2) ? gvar.g_sname_sel : gvar.g_tname_sel);
    ui.text((disp==2) ? gvar.g_tname_sel : gvar.g_sname_sel);
}

to set the content.

Gunnar · April 3, 2026, 6:09pm

I still can’t reproduce the issue. I can get it to flash white for a very brief moment when the layout loads, but I can’t get it to send the code for white even though the color variable is set to something else, as shown in your log file.

If I receive the full script instead of random functions, I might notice something in the sequence of events. Also, what does the editor setting for the dial rotate action look like (title/value positions, value display and so on)?

thx538 · April 4, 2026, 7:46am

Hello,
IIRC for the problem to reproduce you need to untick the custom layout option in the éditorial, and then execute the (provided) code that set the layout and the colors.
I’m away for the week-end so if you still can’t reproduce let me know and I will provide addition information tuesday morning.
Happy easter.

Gunnar · April 4, 2026, 9:07am

OK, I found it.

For some reason, I tested with the OnDialRotated() event instead of the OnDialReleased() event you have. It turned out that OnDialRotated() has an error that concealed a larger, structural issue in how the layout properties are managed(!)

So, now I understand what the problem is, and I just need to figure out what to do about it…

Gunnar · April 4, 2026, 9:02pm

Two questions:

What are your thoughts on the simplified JavaScript migration feature? Does it create something useful, or is it just confusing? Should it be part of the release?
What are your experiences with the WinRT MIDI driver? Based on my tests, it’s the best middle ground that provides access to both loopMIDI and MIDI Service without the issues caused by the MIDI Service. Have you encountered any compatibility problems that make it unsuitable as the default setting?

Gunnar · April 6, 2026, 10:48pm

This update includes fixes for the JavaScript layout handling.

Global settings spacing should be better on Mac.

The MIDI system selection page has been modified to better explain the available options, and the MIDI connections are made more robust when switching between options.

It is made “release-ready” with a version info popup at first start.

Version 4.2.0.83

jordikt · April 7, 2026, 6:30pm

Confirmed. It’s fixed.

thx538 · April 8, 2026, 2:06am

i have mixed feelings. Sometimes it helps, but sometimes i have weird results.
Take this example script :

[(config){TriggerOnLocalMidiEvents:No}{TriggerOnUnchangedVariables:No}]
[(init){@l_pset:1}{@l_disp:0}]

1st press
[(press)(@l_event:0){@l_event:1}{@lt_press:restart}]
[(release)(@l_event:1){@l_event:#@l_event+1#}]
[(press)(@l_event:1-8){@l_event:#@l_event+1#}]
[(release)(@l_event:1-8){@l_event:#@l_event+1#}]

Never happens
[(@lt_press:400)(@l_event:0){@lt_press:reset}{@l_event:0}]
Long Press : Do nothing
[(@l_disp:0)(@lt_press:400)(@l_event:1){@lt_press:reset}{@l_event:0}]
Single Clic
[(@l_disp:0)(@lt_press:400)(@l_event:2){@lt_press:reset}{@l_event:0}] Parameter view : Do nothing
[(@l_disp:1)(@lt_press:400)(@l_event:2){@lt_press:reset}{@l_event:0}{@l_disp:2}] Track View --> Scene Voiew
[(@l_disp:2)(@lt_press:400)(@l_event:2){@lt_press:reset}{@l_event:0}{@l_disp:1}] Scene View --> Track View
Double clic : Do nothing
[(@l_disp:0)(@lt_press:400)(@l_event:3-9){@l_event:0}{@lt_press:reset}]

Switch views
[(tap){@l_disp:#SWITCH(@l_disp,0,1,0)#}{@l_blockupd:0}]
Back to Parameter View
[(@g_pqb1:2-4){@l_disp:0}{@l_blockupd:0}]Switch in amy case
[(@g_pqb1:1){@l_disp:#IF(@l_blockupd=1,@l_disp,0)#}{@l_blockupd:0}] Switch only if device unchanged
New Device Received
[(@g_chnum0:-1){@l_blockupd:1}] Will always be set event if no device




Set State and design
[(init+)(@l_disp:0){display:V-pot}{layout:none}{minmax:0,127}] Design is set in editor
[(init+)(@l_disp:1){display:Fader}{iconleft:none}{layout:#CONCAT(@g_lp, "ts_fader_TR_SC.json")#}]
[(init+)(@l_disp:1-2){design:#CONCAT(@g_dp, SWITCH(@l_disp, 2, "SC_Selector.xml", "TR_Selector.xml"))#}
			{minmax:1,#IF(@l_disp=2, 32, 24)#}
			{layout:#CONCAT(@g_lp, "ts_fader_TR_SC.json")#}]



COLORS
[(init+)(@l_disp:0){@l_toptext_full_width.color:##B8A46E}] Light Yellow
[(init+)(@l_disp:0){@l_toptext_left_icon_present.color:##B8A46E}] Light Yellow
[(init+)(@l_disp:1){@l_toptext_full_width.color:##B8A46E}] Light Yellow
[(init+)(@l_disp:1){@l_fadertext_left_side_upper_row.color:Gray}]
[(init+)(@l_disp:2){@l_toptext_full_width.color:##B8A46E}] Light Yellow
[(init+)(@l_disp:2){@l_fadertext_left_side_upper_row.color:Gray}]




PARAMETER VIEW

Rebind parameter : cc 14, 1 / 2, 0 / 127
[(@g_pqb1:1){cc:14,#(@l_pset-1)*2+1#,0}]
[(@g_pqb1:2){cc:14,#(@l_pset-1)*2+1#,127}]
[(@g_pqb1:3){cc:14,#@l_pset*2#,0}]
[(@g_pqb1:4){cc:14,#@l_pset*2#,127}]


Set icon for quarter bank (1-4)
[(init+)(@l_disp:0)(@g_pqb1:*){@l_ipudt:1}{@l_ipudt:0}]
[(@l_disp:0)(@g_pupdt:1){@l_ipudt:1}{@l_ipudt:0}]
[(@l_ipudt:1){iconleft:#IF(@g_pqb1=@g_pqb0,"none",CONCAT(@g_pp,"PBank-",@g_nhb,"-",@g_pqb1,".png"))#}]

Pick correct title for parameter
[(init+)(@l_disp:0)(@g_pnames:*)(@g_pqb1:*)
		{title:#MID(@g_pnames,1+(@g_pqb1-1)*64+(@l_pset-1)*16,16)#} /*{title:#@l_test#}*/]

Receive midi
[(init+)(@l_disp:0)(cc:1,64,0-127){value:#@e_ccvalue#}{text:#@e_ccvalue#}]
Send Midi
[(rotate)(@l_disp:0){cc:1,#64+@l_pset-1#,#@e_value#}]


TRACK/SCENE  SELECTOR VIEW
Rotate
[(@l_disp:1)(rotate:1-24){@l_val:#@e_value#}{@lt_val:restart}]
[(@l_disp:2)(rotate:1-32){@l_val:#@e_value#}{@lt_val:restart}]
Send Midi after a delay
[(@lt_val:10)(@l_disp:1){cc:16,0,#@l_val#}{@lt_val:reset}]
[(@lt_val:100)(@l_disp:2){cc:16,24,#@l_val#}{@lt_val:reset}]

From DAW : Track, Scene # and names (Init+ necessary)
[(init+)(@l_disp:1)(cc:16,0,1-24){value:#@e_ccvalue#}]
[(init+)(@l_disp:1)(cc:16,24,1-32){value:p,#@e_ccvalue#}]
[(init+)(@l_disp:2)(cc:16,0,1-24){value:p,#@e_ccvalue#}]
[(init+)(@l_disp:2)(cc:16,24,1-32){value:#@e_ccvalue#}]



[(init+)(@l_disp:1)(@g_tname_sel:*)(@g_sname_sel:*){title:#@g_tname_sel#}{text:#@g_sname_sel#}{@l_title:A}]
[(init+)(@l_disp:2)(@g_tname_sel:*)(@g_sname_sel:*){title:#@g_sname_sel#}{text:#@g_tname_sel#}{@l_title:B}]

This is what i get :

// Auto-generated migration from midiScript -> JavaScript (Migrate2, Version 1.1)
// Generated: 2026-04-07 15:36:53 UTC

function OnControlChangeReceived(channel, control, value) {
  if ((channel >= 1 && channel <= 1) && (control >= 64 && control <= 64) && (value >= 0 && value <= 127)) {
    ui.value("#@e_ccvalue#");
    ui.text("#@e_ccvalue#");
  }
  if ((channel >= 16 && channel <= 16) && (control >= 0 && control <= 0) && (value >= 1 && value <= 24)) {
    ui.value("#@e_ccvalue#");
  }
  if ((channel >= 16 && channel <= 16) && (control >= 24 && control <= 24) && (value >= 1 && value <= 32)) {
    ui.value("#@e_ccvalue#");
  }
  if ((channel >= 16 && channel <= 16) && (control >= 0 && control <= 0) && (value >= 1 && value <= 24)) {
    ui.value("#@e_ccvalue#");
  }
  if ((channel >= 16 && channel <= 16) && (control >= 24 && control <= 24) && (value >= 1 && value <= 32)) {
    ui.value("#@e_ccvalue#");
  }
}

function OnDialRotated(ticks, value) {
  midi.sendCC(1, "#64+@l_pset-1#", "#@e_value#");
  l_val = "#@e_value#";
  console.log("Timer restart missing interval definition: lt_val");
  l_val = "#@e_value#";
  console.log("Timer restart missing interval definition: lt_val");
}

function OnGlobalVariableChanged(name, value) {
  if (name === "l_event") {
    l_event = "";
    console.log("Timer restart missing interval definition: lt_press");
  }
  if (name === "l_event") {
    l_event = "#@l_event+1#";
  }
  if (name === "l_event") {
    l_event = "#@l_event+1#";
  }
  if (name === "l_event") {
    l_event = "#@l_event+1#";
  }
  if (name === "l_event") {
    timer.reset("lt_press");
    l_event = "";
  }
  if (name === "l_disp") {
    timer.reset("lt_press");
    l_event = "";
  }
  if (name === "l_event") {
    timer.reset("lt_press");
    l_event = "";
  }
  if (name === "l_disp") {
    timer.reset("lt_press");
    l_event = "";
  }
  if (name === "l_event") {
    timer.reset("lt_press");
    l_event = "";
  }
  if (name === "l_disp") {
    timer.reset("lt_press");
    l_event = "";
    l_disp = "";
  }
  if (name === "l_event") {
    timer.reset("lt_press");
    l_event = "";
    l_disp = "";
  }
  if (name === "l_disp") {
    timer.reset("lt_press");
    l_event = "";
    l_disp = "";
  }
  if (name === "l_event") {
    timer.reset("lt_press");
    l_event = "";
    l_disp = "";
  }
  if (name === "l_disp") {
    l_event = "";
    timer.reset("lt_press");
  }
  if (name === "l_event") {
    l_event = "";
    timer.reset("lt_press");
  }
  if (name === "g_pqb1") {
    l_disp = "";
    l_blockupd = "";
  }
  if (name === "g_pqb1") {
    l_disp = "#IF(@l_blockupd=1,@l_disp,0)#";
    l_blockupd = "";
  }
  if (name === "g_chnum0") {
    l_blockupd = "";
  }
  if (name === "l_disp") {
    ui.display("", false);
    layout.load("none", false);
    ui.minmax(0, 127);
  }
  if (name === "l_disp") {
    ui.display("", false);
    ui.iconleft("none");
    layout.load("#CONCAT(@g_lp, \"ts_fader_TR_SC.json\")#", false);
  }
  if (name === "l_disp") {
    ui.design("#CONCAT(@g_dp, SWITCH(@l_disp, 2, \"SC_Selector.xml\", \"TR_Selector.xml\"))#");
    ui.minmax(1, "#IF(@l_disp=2, 32, 24)#");
    layout.load("#CONCAT(@g_lp, \"ts_fader_TR_SC.json\")#", false);
  }
  if (name === "l_disp") {
    l_toptext_full_width.color = "";
  }
  if (name === "l_disp") {
    l_toptext_left_icon_present.color = "";
  }
  if (name === "l_disp") {
    l_toptext_full_width.color = "";
  }
  if (name === "l_disp") {
    l_fadertext_left_side_upper_row.color = "";
  }
  if (name === "l_disp") {
    l_toptext_full_width.color = "";
  }
  if (name === "l_disp") {
    l_fadertext_left_side_upper_row.color = "";
  }
  if (name === "g_pqb1") {
    midi.sendCC(14, "#(@l_pset-1)*2+1#", 0);
  }
  if (name === "g_pqb1") {
    midi.sendCC(14, "#(@l_pset-1)*2+1#", 127);
  }
  if (name === "g_pqb1") {
    midi.sendCC(14, "#@l_pset*2#", 0);
  }
  if (name === "g_pqb1") {
    midi.sendCC(14, "#@l_pset*2#", 127);
  }
  if (name === "l_disp") {
    l_ipudt = "";
    l_ipudt = "";
  }
  if (name === "g_pqb1") {
    l_ipudt = "";
    l_ipudt = "";
  }
  if (name === "l_disp") {
    l_ipudt = "";
    l_ipudt = "";
  }
  if (name === "g_pupdt") {
    l_ipudt = "";
    l_ipudt = "";
  }
  if (name === "l_ipudt") {
    ui.iconleft("#IF(@g_pqb1=@g_pqb0,\"none\",CONCAT(@g_pp,\"PBank-\",@g_nhb,\"-\",@g_pqb1,\".png\"))#");
  }
  if (name === "l_disp") {
    ui.title("#MID(@g_pnames,1+(@g_pqb1-1)*64+(@l_pset-1)*16,16)#");
  }
  if (name === "g_pnames") {
    ui.title("#MID(@g_pnames,1+(@g_pqb1-1)*64+(@l_pset-1)*16,16)#");
  }
  if (name === "g_pqb1") {
    ui.title("#MID(@g_pnames,1+(@g_pqb1-1)*64+(@l_pset-1)*16,16)#");
  }
  if (name === "l_disp") {
    ui.value("#@e_ccvalue#");
    ui.text("#@e_ccvalue#");
  }
  if (name === "l_disp") {
    midi.sendCC(1, "#64+@l_pset-1#", "#@e_value#");
  }
  if (name === "l_disp") {
    l_val = "#@e_value#";
    console.log("Timer restart missing interval definition: lt_val");
  }
  if (name === "l_disp") {
    l_val = "#@e_value#";
    console.log("Timer restart missing interval definition: lt_val");
  }
  if (name === "l_disp") {
    midi.sendCC(16, 0, "#@l_val#");
    timer.reset("lt_val");
  }
  if (name === "l_disp") {
    midi.sendCC(16, 24, "#@l_val#");
    timer.reset("lt_val");
  }
  if (name === "l_disp") {
    ui.value("#@e_ccvalue#");
  }
  if (name === "l_disp") {
    ui.value("#@e_ccvalue#");
  }
  if (name === "l_disp") {
    ui.value("#@e_ccvalue#");
  }
  if (name === "l_disp") {
    ui.value("#@e_ccvalue#");
  }
  if (name === "l_disp") {
    ui.title("#@g_tname_sel#");
    ui.text("#@g_sname_sel#");
    l_title = "";
  }
  if (name === "g_tname_sel") {
    ui.title("#@g_tname_sel#");
    ui.text("#@g_sname_sel#");
    l_title = "";
  }
  if (name === "g_sname_sel") {
    ui.title("#@g_tname_sel#");
    ui.text("#@g_sname_sel#");
    l_title = "";
  }
  if (name === "l_disp") {
    ui.title("#@g_sname_sel#");
    ui.text("#@g_tname_sel#");
    l_title = "";
  }
  if (name === "g_tname_sel") {
    ui.title("#@g_sname_sel#");
    ui.text("#@g_tname_sel#");
    l_title = "";
  }
  if (name === "g_sname_sel") {
    ui.title("#@g_sname_sel#");
    ui.text("#@g_tname_sel#");
    l_title = "";
  }
}

function OnInit() {
  l_pset = "";
  l_disp = "";
  ui.display("", false);
  layout.load("none", false);
  ui.minmax(0, 127);
  ui.display("", false);
  ui.iconleft("none");
  layout.load("#CONCAT(@g_lp, \"ts_fader_TR_SC.json\")#", false);
  ui.design("#CONCAT(@g_dp, SWITCH(@l_disp, 2, \"SC_Selector.xml\", \"TR_Selector.xml\"))#");
  ui.minmax(1, "#IF(@l_disp=2, 32, 24)#");
  layout.load("#CONCAT(@g_lp, \"ts_fader_TR_SC.json\")#", false);
  l_toptext_full_width.color = "";
  l_toptext_left_icon_present.color = "";
  l_toptext_full_width.color = "";
  l_fadertext_left_side_upper_row.color = "";
  l_toptext_full_width.color = "";
  l_fadertext_left_side_upper_row.color = "";
  l_ipudt = "";
  l_ipudt = "";
  ui.title("#MID(@g_pnames,1+(@g_pqb1-1)*64+(@l_pset-1)*16,16)#");
  ui.value("#@e_ccvalue#");
  ui.text("#@e_ccvalue#");
  ui.value("#@e_ccvalue#");
  ui.value("#@e_ccvalue#");
  ui.value("#@e_ccvalue#");
  ui.value("#@e_ccvalue#");
  ui.title("#@g_tname_sel#");
  ui.text("#@g_sname_sel#");
  l_title = "";
  ui.title("#@g_sname_sel#");
  ui.text("#@g_tname_sel#");
  l_title = "";
}

function OnKeyPressed(state) {
  l_event = "";
  console.log("Timer restart missing interval definition: lt_press");
  l_event = "#@l_event+1#";
}

function OnKeyReleased(state) {
  l_event = "#@l_event+1#";
  l_event = "#@l_event+1#";
}

function OnScreenTouched(x, y) {
  l_disp = "#SWITCH(@l_disp,0,1,0)#";
  l_blockupd = "";
}

function OnTimerElapsed(name, isGlobal, time) {
  timer.reset("lt_press");
  l_event = "";
  timer.reset("lt_press");
  l_event = "";
  timer.reset("lt_press");
  l_event = "";
  timer.reset("lt_press");
  l_event = "";
  l_disp = "";
  timer.reset("lt_press");
  l_event = "";
  l_disp = "";
  l_event = "";
  timer.reset("lt_press");
  midi.sendCC(16, 0, "#@l_val#");
  timer.reset("lt_val");
  midi.sendCC(16, 24, "#@l_val#");
  timer.reset("lt_val");
}

there is a bunch of unnecessary repetitions that i don’t understand.

thx538 · April 8, 2026, 2:10am

and this is what ChatGPT produces after feeding him with a few pages from the documentation :

// =====================
// STATE
// =====================
let l_pset = 1;
let l_disp = 0;
let l_event = 0;
let l_blockupd = 0;
let l_val = 0;

let pressTimer = null;
let valTimer = null;


// =====================
// INIT
// =====================
function onInit() {
  l_pset = 1;
  l_disp = 0;

  updateDesign();
  updateColors();
}


// =====================
// PRESS / RELEASE
// =====================
function onPress() {
  if (l_event === 0) {
    l_event = 1;
    startPressTimer();
  } else if (l_event >= 1 && l_event <= 8) {
    l_event++;
  }
}

function onRelease() {
  if (l_event >= 1 && l_event <= 8) {
    l_event++;
  }
}


// =====================
// CLICK HANDLING
// =====================
function startPressTimer() {
  clearTimeout(pressTimer);

  pressTimer = setTimeout(() => {
    handleClickPattern();
  }, 400);
}

function handleClickPattern() {
  if (l_event === 1) {
    // long press → do nothing
  }
  else if (l_event === 2) {
    handleSingleClick();
  }
  else if (l_event >= 3) {
    // double click → do nothing
  }

  l_event = 0;
}

function handleSingleClick() {
  if (l_disp === 0) return;

  if (l_disp === 1) {
    l_disp = 2;
  } else if (l_disp === 2) {
    l_disp = 1;
  }

  updateDesign();
}


// =====================
// TAP (quick toggle)
// =====================
function onTap() {
  l_disp = (l_disp === 0) ? 1 : 0;
  l_blockupd = 0;
  updateDesign();
}


// =====================
// ROTARY
// =====================
function onRotate(value) {
  if (l_disp === 0) {
    sendCC(1, 64 + l_pset - 1, value);
  } else {
    l_val = value;
    startValTimer();
  }
}

function startValTimer() {
  clearTimeout(valTimer);

  let delay = (l_disp === 1) ? 10 : 100;

  valTimer = setTimeout(() => {
    if (l_disp === 1) {
      sendCC(16, 0, l_val);
    } else if (l_disp === 2) {
      sendCC(16, 24, l_val);
    }
  }, delay);
}


// =====================
// MIDI INPUT EVENTS
// =====================
function onCC(channel, cc, value) {

  // Parameter view feedback
  if (l_disp === 0 && channel === 1 && cc === 64) {
    setValue(value);
    setText(String(value));
  }

  // Track / Scene feedback
  if (channel === 16) {
    if (l_disp === 1) {
      if (cc === 0) setValue(value);
      if (cc === 24) setValue(value, true);
    }

    if (l_disp === 2) {
      if (cc === 0) setValue(value, true);
      if (cc === 24) setValue(value);
    }
  }
}


// =====================
// PARAMETER BANK (g_pqb1)
// =====================
function onParameterBank(val) {

  // Rebind parameter
  let base = (l_pset - 1) * 2;

  if (val === 1) sendCC(14, base + 1, 0);
  if (val === 2) sendCC(14, base + 1, 127);
  if (val === 3) sendCC(14, base + 2, 0);
  if (val === 4) sendCC(14, base + 2, 127);

  // View switching logic
  if (val >= 2 && val <= 4) {
    l_disp = 0;
  } else if (val === 1) {
    if (l_blockupd !== 1) {
      l_disp = 0;
    }
  }

  l_blockupd = 0;
  updateDesign();
}


// =====================
// DEVICE CHANGE
// =====================
function onNewDevice() {
  l_blockupd = 1;
}


// =====================
// UI DESIGN
// =====================
function updateDesign() {

  if (l_disp === 0) {
    setDisplay("V-pot");
    setLayout("none");
    setMinMax(0, 127);
  }

  if (l_disp === 1 || l_disp === 2) {

    setDisplay("Fader");

    let design = (l_disp === 2)
      ? "SC_Selector.xml"
      : "TR_Selector.xml";

    setDesign(design);
    setLayout("ts_fader_TR_SC.json");

    setMinMax(1, (l_disp === 2) ? 32 : 24);
  }
}


// =====================
// COLORS
// =====================
function updateColors() {
  setColor("topText", "#B8A46E");

  if (l_disp !== 0) {
    setColor("faderText", "gray");
  }
}


// =====================
// MIDI SEND
// =====================
function sendCC(channel, cc, value) {
  midi.sendControlChange(channel, cc, value);
}

much more convincing, (and probably improvable with a few additional directives) but i don’t know if it make sense of if it’s even possible for you to plug it to the editor.
